Pet Preform mould



SINO-PK is the most famous PET preform mould manufacturers, more than ten years professional PET preform mold supplier in China.


SINO-PK is the most famous plastic PP, PE cap,closure mould manufacturer, has strong design ability and tooling technology.


SINO-PK
offer PET ,PE blowing bottle mould,PET ,PE blowing bottle mold,PET ,PE blowing bottle mould manufactures in China.

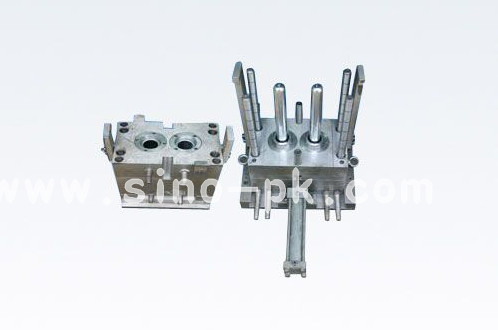

5 gallon PET prefrom mould 2 cavities

PET preform mould manufacturer---World Famous PET preform molding expert---SINOPK

PET preform mould



2 cavities 5 gallon PET preform mould specification



2 cavities 5 gallon PET preform mould steel:

  • 2 cavities 5 gallon PET preform mould cavity steel

Stavax S420 stainless steel ,tempered with HRC 50+/-2



  • 2 cavities 5 gallon PET preform mould core steel

Stavax S420 stainless steel ,tempered with HRC 50+/-2



  • 2 cavities 5 gallon PET preform mould neck screw steel

DIN 1.2083,with tempered HRC 45



  • 2 cavities 5 gallon PET preform mould spare parts steel

Mould speare parts use DIN 1.2344 dimension measure up to D-M-E standard



  • 2 cavities 5 gallon PET preform mould hot vavle gate

Hot manifold use DIN 1.2344 made in Thyssen Krupp German, with Anole-heat brand,original is German.

Hot nozzle are copper-Zn with HRC 37 to HRC 41

Heating elements use temperature controlling with each heating area separated controlled



  • 2 cavities 5 gallon PET preform mould  design

All the moving area was insert with durable parts which is interchaneable

2D drawing assembling drawing and part drawing available with shipment



  • 2 cavities 5 gallon PET preform mould toolin spec.

Cooling system optimal cooling design and all the cooling system are Nickel plated

Ejection system auotomatic ejection system, Knock our bu machine and ejector return by machine

Polishing precision polishing until the core and cavity like the mirro



If you are interested in  5 gallon PET preform mould ,welcome to contact us.

That would be our pleasure to work with your eateem company.
